PC/ABS Plastic Resin: A Comprehensive Guide To Properties, Variations, Selection, And Processing

PC/ABS Plastic Resin: A Comprehensive Guide to Properties, Variations, Selection, and Processing

Introduction:

PC/ABS (Polycarbonate/Acrylonitrile Butadiene Styrene) is a widely used engineering thermoplastic that combines the best properties of polycarbonate (PC) and ABS plastic. This blend offers high impact resistance, good thermal stability, excellent mechanical strength, and improved processability compared to pure PC or ABS.

Due to its versatility, PC/ABS is used in automotive parts, electronics housings, consumer goods, medical devices, and industrial applications. However, different formulations (such as glass-filled PC/ABS or flame-retardant grades) are available to meet specific performance requirements.

This article explores:

• Key characteristics of PC/ABS

• Different combinations (glass-filled, flame-retardant, etc.)

• How to choose the right PC/ABS grade

• Advantages & disadvantage

• Common injection molding problems & solutions

1. Key Characteristics of PC/ABS Plastic Resin

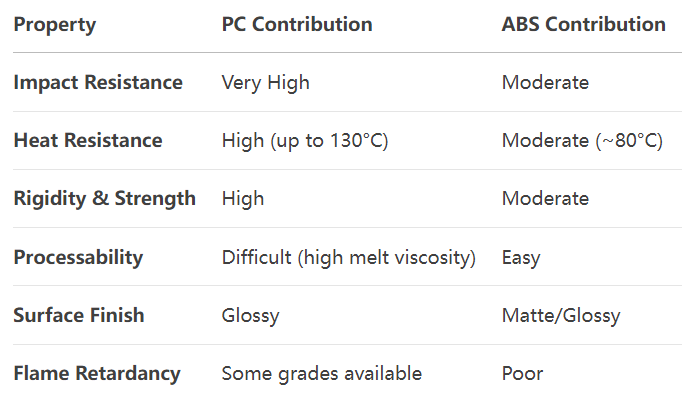

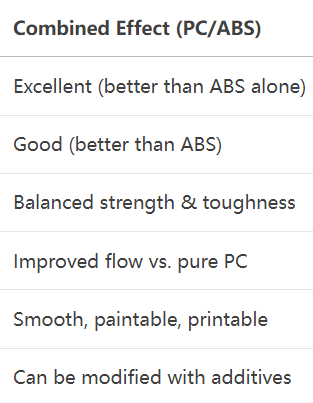

PC/ABS blends inherit beneficial properties from both base polymers:

2. Different PC/ABS Combinations & Their Uses

A) Standard PC/ABS

-General-purpose blend (70% PC / 30% ABS common)

- Applications: Automotive interiors, electronic housings, consumer goods

- Pros: Good balance of strength, impact resistance, and moldability

- Cons:Limited chemical resistance

B) Glass-Fiber Reinforced PC/ABS (PC/ABS + GF)

- Typical glass fiber content: 10%, 20%, or 30%

- Key Benefits:

 - Increased stiffness & dimensional stability

 - Reduced warpage in large parts

 - Better heat resistance

- Applications:Structural automotive parts, industrial components

- Disadvantages:Lower impact strength, abrasive to molds

C) Flame-Retardant (FR) PC/ABS

- UL94 V-0 or V-2 rated (halogen-free options available)

- Uses:Electrical enclosures, connectors, IT equipment

- Pros:Meets safety standards for electronics

- Cons:Slightly reduced mechanical properties

3. How to Choose the Right PC/ABS Grade

• Application Need：Recommended PC/ABS Grade

• High impact resistance： Standard PC/ABS (higher PC %)

• High stiffness & low warpage：Glass-filled PC/ABS (20-30% GF)

• Flame resistance required： FR PC/ABS (UL94 V-0)

• Outdoor/UV exposure：UV-stabilized PC/ABS

4. Advantages & Disadvantages of PC/ABS

Advantages

• Excellent impact resistance (better than ABS alone)

• Good heat resistance (compared to pure ABS)

• Easier to process than pure PC(lower melt viscosity)

• Good surface finish & paint adhesion

• Customizable with additives (flame retardants, glass fibers, UV stabilizers)

 Disadvantages

• More expensive than ABS

• Lower chemical resistance than PC

• Hygroscopic (absorbs moisture, requires drying before molding)

• Glass-filled grades reduce toughness**

5. Common Injection Molding Problems & Solutions

A) Warping & Shrinkage

- Cause: Uneven cooling, high internal stresses

- Solution:

 - Optimize mold temperature (80-100°C recommended)

 - Use glass-filled PC/ABS for better dimensional stability

B) Splay Marks (Silver Streaks)

- Cause: Moisture in the resin

- Solution:

 - Pre-dry PC/ABS at 80-100°C for 2-4 hours before molding

C) Poor Surface Finish

- Cause:Low mold temperature, improper flow

- Solution:

 - Increase mold temperature

 - Use high-flow PC/ABS for complex parts

D) Brittleness

- Cause: Over-drying or excessive regrind use

- Solution:

 - Limit regrind to <20% of fresh material

 - Avoid excessive drying times

Conclusion

PC/ABS is a versatile engineering plastic that bridges the gap between polycarbonate’s strength and ABS’s processability. By selecting the right grade (standard, glass-filled, flame-retardant, or high-flow), manufacturers can optimize performance for specific applications.

Key Takeaways:

✔ Glass-filled PC/ABS improves stiffness but reduces impact strength

✔ Flame-retardant grades are essential for electronics

✔ Moisture control is critical for defect-free molding

✔ High-flow grades are best for thin-wall designs
