The selection of appropriate materials for outdoor applications presents unique challenges for engineers, designers, and manufacturers. Unlike indoor environments, outdoor settings expose materials to harsh environmental factors including ultraviolet radiation, temperature fluctuations, moisture, and atmospheric pollutants. These elements can cause premature degradation in many common plastics, leading to cosmetic issues like color fading and surface cracking, as well as more serious structural failures. For decades, ABS (Acrylonitrile Butadiene Styrene) was a go-to material for many applications due to its excellent mechanical properties and processability, but its poor weather resistance limited its outdoor use without protective coatings. This limitation led to the development of specialized weather-resistant polymers includingASA (Acrylonitrile Styrene Acrylate) and AES (Acrylonitrile Ethylene Propylene Diene Styrene), which offer the beneficial properties of ABS while significantly improving outdoor durability. This article provides a comprehensive comparison between these two advanced materials to guide selection decisions for outdoor applications.
Chemical Structure: ASA is a terpolymer composite consisting of acrylonitrile, styrene, and acrylic ester elastomer. The critical difference from ABS lies in the replacement of the butadiene rubber component with acrylic-based elastomers, which contain significantly fewer vulnerable double bonds in their molecular structure. This chemical composition change is fundamental to ASA's improved weather resistance properties.
Manufacturing Process: ASA is typically produced through emulsion polymerization processes, where the acrylic elastomer is grafted with styrene-acrylonitrile (SAN) chains. This manufacturing approach creates a material with excellent homogeneity and consistent performance characteristics. Some manufacturers utilize continuous mass polymerization techniques for specific grade requirements.
Chemical Structure: AES replaces the vulnerable butadiene rubber in ABS with EPDM (Ethylene Propylene Diene Monomer) rubber, which contains substantially fewer carbon double bonds. These double bonds are particularly susceptible to UV degradation, and their reduction significantly enhances the material's weather resistance. The EPDM rubber phase has a low glass transition temperature, contributing to excellent low-temperature impact performance .
Manufacturing Methods: AES can be produced through two primary methods: direct synthesis (via solution, emulsion, or suspension polymerization) creating a grafted copolymer with EPDM main chains and SAN branches, or compounding approaches where EPDM and SAN are compatibilized and blended in molten state. While direct synthesis generally yields superior properties, compounding methods offer greater formulation flexibility.

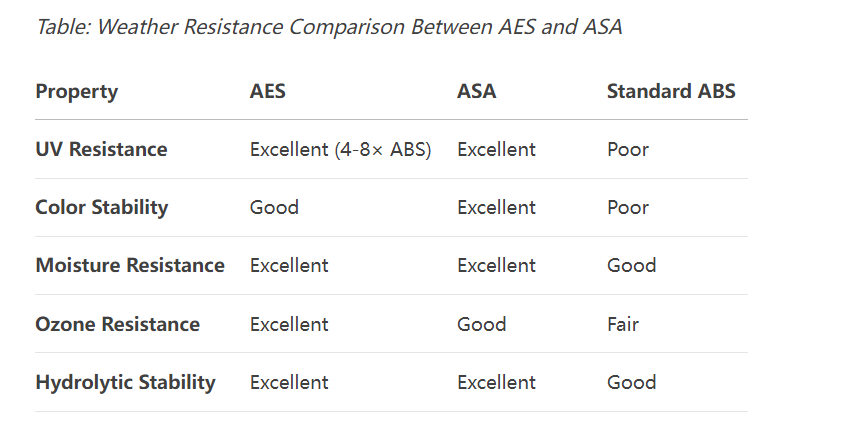

Both ASA and AES achieve their superior UV resistance through fundamental changes to the rubber component of their chemistry. ASA addresses this vulnerability by replacing butadiene with acrylic ester elastomers that have substantially fewer UV-sensitive double bonds. Additionally, ASA typically incorporates advanced UV stabilizers and absorbers that further enhance its resistance to ultraviolet radiation 1.
AES utilizes EPDM rubber instead of butadiene, which also contains significantly fewer double bonds. The reduction in vulnerable chemical structures makes AES 4-8 times more weather-resistant than standard ABS according to accelerated weathering tests 6. The EPDM rubber in AES has exceptional inherent resistance to ozone and UV radiation, contributing to the material's longevity in outdoor applications.
Beyond UV resistance, outdoor materials must withstand moisture exposure which accelerates degradation through two primary mechanisms: serving as a source of free radicals that accelerate autoxidation, and directly causing hydrolytic degradation of polymer chains. Both ASA and AES demonstrate excellent resistance to moisture-related degradation, performing significantly better than ABS in humid environments.
AES exhibits particularly strong resistance to ozone degradation, making it suitable for applications near electrical equipment that generates ozone or for mountain environments where ozone levels may be elevated. This property makes AES preferable for applications such as electrical enclosures for outdoor use or components in high-altitude environments.
One of the most significant differences between AES and ASA lies in their impact performance, particularly at lower temperatures. Due to the EPDM rubber component which has a very low glass transition temperature, AES maintains excellent impact strength even in cold conditions. This makes it particularly valuable for applications in cold climates or for components that must function reliably across a wide temperature range .
ASA provides good impact strength at room temperature but experiences reduced toughness at lower temperatures. While still superior to many other plastics, its acrylic elastomer component doesn't maintain the same level of impact performance in cold conditions as EPDM does in AES. For applications requiring consistent impact resistance from high to low temperatures, AES generally holds an advantage.
Both materials offer excellent mechanical properties that make them suitable for structural applications:
Tensile Strength: ASA typically exhibits tensile strength values in the range of 35-37 MPa, while AES shows similar performance characteristics .
Flexural Modulus: ASA grades range from 1600-2260 MPa in flexural modulus, allowing for selection based on stiffness requirements .
Hardness: Both materials offer similar surface hardness, with Rockwell R values typically in the mid-80s, providing good resistance to scratching and abrasion.
The balance of properties in both AES and ASA makes them excellent choices for applications requiring structural integrity along with weather resistance. They maintain the favorable mechanical properties of ABS while addressing its environmental limitations.
The heat resistance of both materials is generally comparable to standard ABS, with heat deflection temperatures typically in the range of 70-81°C depending on the specific grade. For applications requiring higher temperature resistance, special heat-resistant grades are available from various manufacturers.
Both materials exhibit good thermal aging resistance, maintaining their impact strength and mechanical properties even after extended exposure to elevated temperatures. This property is particularly important for applications in warm climates where materials may be exposed to direct sunlight and the resulting heat buildup.

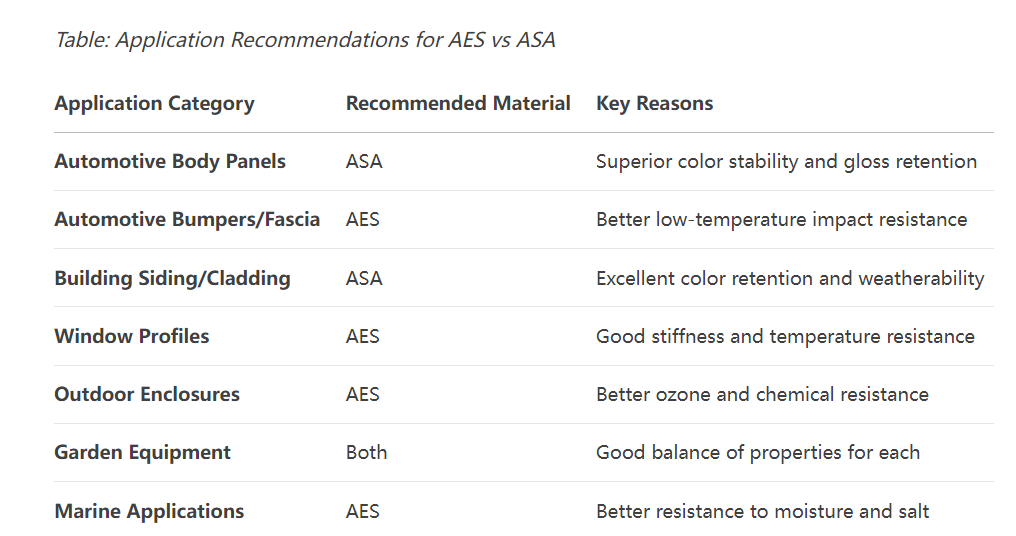

The automotive industry represents a significant application area for both AES and ASA, each with distinct advantages based on specific component requirements:
AES Applications: Thanks to its exceptional low-temperature impact performance, AES is ideally suited for automotive exterior parts that must withstand minor impacts in cold weather conditions. Typical applications include license plate panels, lower door panels, pillar trims, and radiator grilles. Its ability to resist chipping and cracking in cold weather makes it valuable for these applications.
ASA Applications: With its superior color stability and gloss retention, ASA is often preferred for automotive components where appearance maintenance is critical. These include exterior mirror housings, roof rails, and various trim components. ASA's resistance to fading ensures that color-matched parts maintain their appearance throughout the vehicle's lifespan.
The construction industry utilizes both materials for various exterior applications:
AES Applications: AES is excellent for building components that experience temperature variations and require impact resistance. Typical uses include window profiles, door cladding, roofing materials, and fencing applications. Its resistance to ozone also makes it suitable for electrical components used in building applications.
ASA Applications: ASA is widely used for external wall cladding, soffit systems, and outdoor furniture. Its excellent color retention ensures that buildings maintain their aesthetic appeal over time. ASA's resistance to yellowing makes it particularly valuable for white and light-colored building components.
AES Applications: The combination of weather resistance and impact strength makes AES ideal for outdoor recreational equipment, garden machinery components, swimming pool accessories, and covers. Its ability to maintain properties in cold weather also makes it suitable for winter sports equipment components.
ASA Applications: ASA is often selected for outdoor electronic enclosures, satellite antennas, and irrigation system components where color retention and structural integrity are important. ASA is also used for sporting goods, garden equipment, and various lifestyle products where appearance matters.
Both AES and ASA offer good processability using standard plastic processing equipment, though some specific considerations apply:
Drying Requirements: Both materials are hygroscopic and require thorough drying before processing. Typical drying parameters include 3-4 hours at 80-85°C (90-100°C for heat-resistant grades), achieving moisture content below 0.1%. Inadequate drying can lead to surface defects and reduced mechanical properties.
Processing Temperatures: Recommended melt temperatures for both materials typically range from 200°C to 260°C, with higher temperatures used for heat-resistant grades 7. Excessive temperatures or prolonged residence times (generally exceed 30 mins) should be avoided to prevent material degradation.
Injection Molding Parameters: Optimal injection pressures range from 500-800 bar, with medium to high injection speeds recommended. Typical mold temperatures are between 40-80°C, and screw back pressure of 10-40 bar is typically used.
Both materials can be easily post-processed using standard methods:
Machining: Both ASA and AES can be machined using standard techniques for thermoplastics, including drilling, milling, and turning.
Decoration: They accept painting and printing well, though their weather resistance often eliminates the need for protective coatings. When painting is desired for aesthetic reasons, compatibility testing with specific coating systems is recommended.
Joining: Both materials can be joined using adhesive bonding (with appropriate adhesives) or mechanical fastening methods. Solvent welding techniques commonly used for ABS are also generally applicable to ASA and AES.
The cost structure for both materials is generally comparable, with prices typically higher than standard ABS but justified by the enhanced weather resistance properties.
Choosing between AES and ASA for outdoor applications requires careful consideration of several factors:
8.1 Prioritize AES When:
Low-temperature impact resistance is critical for the application
Exceptional ozone resistance is required
The part will experience physical impacts in cold environments
Chemical resistance is an important consideration
Color retention and appearance stability are paramount
The application requires maintenance of surface gloss over time
Parts will be subjected to prolonged direct sunlight exposure
Heat resistance is a key requirement
Both materials offer significant advantages over standard ABS for outdoor applications, with excellent weather resistance and good mechanical properties. The choice between them should be based on the specific requirements of the application, environmental conditions, and performance priorities. By understanding their differences and strengths, designers and engineers can make informed decisions that optimize product performance, durability, and cost-effectiveness for outdoor applications.
